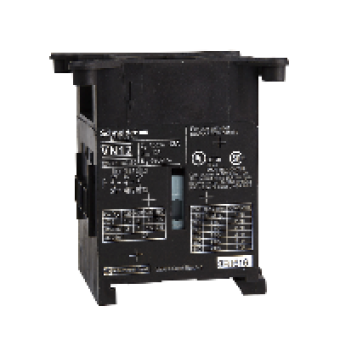

VN12 - TeSys Mini-VARIO - Switch body for switch-disconnector - 3 poles - 12 A, Schneider Electric
- Product Code: VN12
- Brand: Schneider Electric
- Availability: To be confirmed
- € 6.76 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
product name
TESYS MINI VARIO
device short name
VN
product or component type
SWITCH BODY
performance level
STANDARD
poles description
3P
contacts type and composition
3 NO
network type
AC
network frequency
50 60 HZ
COMPLEMETARY CHARACTERISTICS
mounting support
SYMMETRICAL RAIL
[Ue] rated operational voltage
690 V AC 5060 HZ
[Uimp] rated impulse withstand voltage
6 KV
[Ith] conventional free air thermal current
12 A
[Ithe] conventional enclosed thermal current
10 A
[Ie] rated operational current
8.1 A (AC-23) at 400 V
rated operational power in W
3 kW at 400...415 V (AC-3)
intermittent duty class
30
Making capacity ( I Rms)
120 A 400 V (AC-21A)
[Icm] rated short-circuit making capacity
0.5 kA 400 V at Ipeak
[Icw] rated short-time withstand Rms current
140 A 400 V during 1 s
rated conditional short-circuit current
6 kA 400 V - associated fuse 12 A aM
breaking capacity
120 A 400 V AC-22A
mechanical durability
50000 CYCLES
electrical durability
30000 cycles DC-1...5
suitability for isolation
YES
connections - terminals
power circuit : screw clamp terminals cable 4 mm² - cable stiffness: solid -
tightening torque
power circuit : 7 N.m - on screw clamp terminals
height
46.5 MM
width
56 MM
depth
62 MM
product weight
0.11 KG
compatibility code
V
