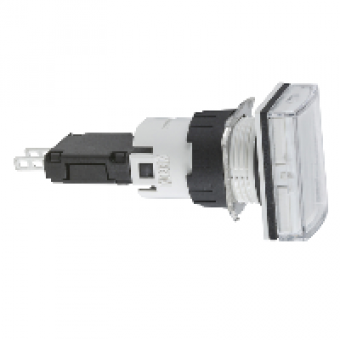

XB6DV1BB - rectangular white complete pilot light Ø16 with integral LED 12...24V, Schneider Electric
- Product Code: XB6DV1BB
- Brand: Schneider Electric
- Availability: To be confirmed
- € 6.99 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB6
product or component type
COMPLETE PILOT LIGHT
device short name
XB6
bezel material
PLASTIC
mounting diameter
16 MM
sale per indivisible quantity
1
shape of signaling unit head
RECTANGULAR
cap/operator or lens colour
WHITE
light source
LED
bulb base
INTEGRAL LED
light block supply
DIRECT
[Us] rated supply voltage
12...24 V ACDC
COMPLEMETARY CHARACTERISTICS
height
18 MM
width
24 MM
depth
57 MM
terminals description ISO n°1
+ - PL
product weight
0.015 KG
operating position
ANY POSITION
connections - terminals
FASTON CONNECTORS 2.8 X 0.5 MM
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 2 CONFORMING TO ENIEC 60947-1
[Uimp] rated impulse withstand voltage
4 KV CONFORMING TO ENIEC 60947-1
signalling type
STEADY
supply voltage limits
6..30 V ACDC
current consumption
15 MA
surge withstand
1 KV DIRECT CONTACT CONFORMING TO IEC 61000-4-5
compatibility code
XB6
