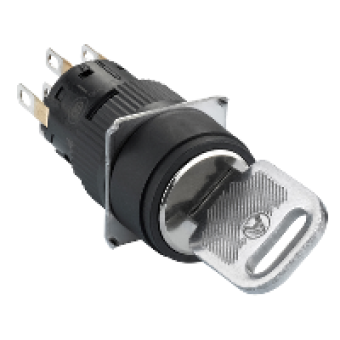

XB6EAG222P - round black key selector switch Ø16-projecting keylock 2 positions-2CO, Schneider Electric
- Product Code: XB6EAG222P
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB6E
product or component type
MONOLITHIC SELECTOR SWITCH
device short name
XB6E
bezel material
PLASTIC
mounting diameter
16 MM
sale per indivisible quantity
5
shape of signaling unit head
ROUND
type of operator
STAY PUT
operator profile
KEY SWITCH
operator position information
2 POSITIONS
key number
132
key withdrawal position
IN ANY POSITION
contacts type and composition
2 OC
contact operation
SNAP ACTION
connections - terminals
insulated faston : 2.8 x 0.5 mm
contacts material
GOLD-FLASHED SILVER
COMPLEMETARY CHARACTERISTICS
product weight
0.02 KG
overvoltage category
II CONFORMING TO IEC 60536
marking
CE
mechanical durability
250000 CYCLES
tightening torque
0.6...1 N.m
contact resistance
< 50 mOhm for 1/6 V
short-circuit protection
2 A by gG cartridge fuse
[Ith] conventional free air thermal current
3 A WITH FAST CONNECTOR SOCKET
[Ie] rated operational current
1.5 A at 120 V, AC-12 conforming to EN/IEC 60947-5-1
electrical durability
100000 cycles AC, 0.7 A - 220 V conforming to EN/IEC 60947-5-1 appendix C
compatibility code
XB6
