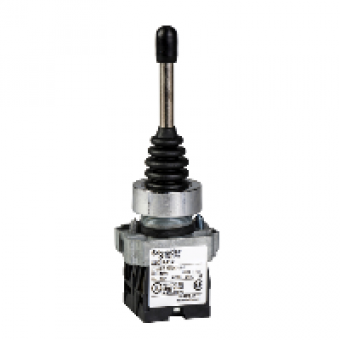

XD2PA247 - complete joystick controller - Ø22 - 4 directions - 1 NO per direction, Schneider Electric
- Product Code: XD2PA247
- Brand: Schneider Electric
- Availability: To be confirmed
- € 55.20 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XD2
product or component type
COMPLETE JOYSTICK CONTROLLER
device short name
XD2
mounting diameter
22 MM
bezel material
BLACK PLASTIC
COMPLEMETARY CHARACTERISTICS
[Ie] rated operational current
0.27 A at 250 V DC-13, Q300 conforming to EN/IEC 60947-5-1
[Ui] rated insulation voltage
500 V DEGREE OF POLLUTION 3 CONFORMING TO ENIEC 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO ENIEC 60947-1
operator position information
ALL POSITIONS
notch per direction
1
operator direction information
4 DIRECTIONS
contacts type and composition
1 NO TIME DELAYED
short-circuit protection
10 A gG (gl) Neozed cartridge fuse conforming to EN/IEC 60947-5-1
connections - terminals
captive screw clamp terminals - 2 x 1.5 mm² with or without cable end
electrical durability
1000000 cycles at 230 V AC-15, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
contact code designation
A600-Q600
overvoltage category
class I conforming to IEC 61140
mechanical durability
1000000 CYCLES
fixing center
85 X 85 MM
return
TO 0 POSITION
height
146 MM
depth
40 MM
product weight
0.145 KG
compatibility code
XD2
