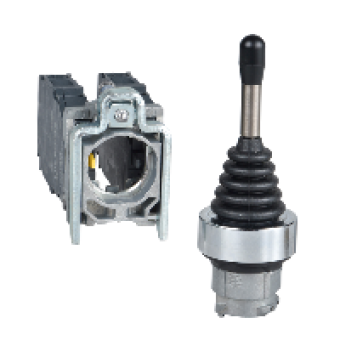

XD4PA14 - joystick controller Ø22 4-direction stay put 1NO per direction, Schneider Electric
- Product Code: XD4PA14
- Brand: Schneider Electric
- Availability: To be confirmed
- € 38.63 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XDA
product or component type
COMPLETE JOYSTICK CONTROLLER
device short name
XD4
bezel material
CHROMIUM PLATED METAL
fixing collar material
ZAMAK
mounting diameter
22 MM
sale per indivisible quantity
1
type of operator
STAY PUT LONG OPERATING SHAFT 54 MM LENGTH
operator position information
5 POSITIONS
operator direction information
4 DIRECTIONS
contacts type and composition
1 NO
contact operation
SLOW-BREAK
connections - terminals
screw clamp terminals : <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
COMPLEMETARY CHARACTERISTICS
product weight
0.133 KG
resistance to high pressure washer
7000000 PA AT 55 CDISTANCE 0.1 M
shape of signaling unit head
ROUND
notch per direction
1
contacts usage
STANDARD
positive opening
WITHOUT
mechanical durability
1000000 CYCLES
tightening torque
0.8...1.2 N.M CONFORMING TO EN 60947-1
shape of screw head
CROSS HEAD COMPATIBLE WITH PHILIPS NO 1 SCREWDRIVER
contacts material
SILVER ALLOY AG NI
short-circuit protection
10 A CARTRIDGE FUSE TYPE GG CONFORMING TO ENIEC 60947-5-1
[Ith] conventional free air thermal current
10 A CONFORMING TO ENIEC 60947-5-1
[Ui] rated insulation voltage
600 V DEGREE OF POLLUTION 3 CONFORMING TO EN 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO EN 60947-1
[Ie] rated operational current
0.1 A AT 250 V DC-13 R300 CONFORMING TO ENIEC 60947-5-1
electrical durability
1000000 CYCLES AC-15 2 A AT 230 V OPERATING RATE 3600 CYCH LOAD FACTOR 0.5 CONFORMING TO ENIEC 60947-5-1 APPENDIX C
electrical reliability
λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
compatibility code
XD4
