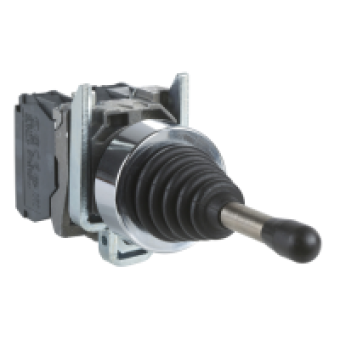

XD5PA14 - joystick controller Ø22 4-direction stay put 1NO per direction, Schneider Electric
- Product Code: XD5PA14
- Brand: Schneider Electric
- Availability: To be confirmed
- € 36.25 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB5
product or component type
COMPLETE JOYSTICK CONTROLLER
device short name
XD5
bezel material
PLASTIC
fixing collar material
PLASTIC
mounting diameter
22 MM
sale per indivisible quantity
1
shape of signaling unit head
ROUND
type of operator
STAY PUT
operator profile
54 MM LONG OPERATING SHAFT
operator position information
5 POSITIONS
operator direction information
4 DIRECTIONS
connections - terminals
screw clamp terminals : <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
COMPLEMETARY CHARACTERISTICS
height
47 MM
width
30 MM
depth
132 MM
product weight
0.077 KG
resistance to high pressure washer
7000000 PA AT 55 CDISTANCE 0.1 M
notch per direction
1
contacts type and composition
1 NO
contact operation
SLOW-BREAK
contacts usage
STANDARD
positive opening
WITHOUT POSITIVE OPENING
mechanical durability
1000000 CYCLES
tightening torque
0.8...1.2 N.m EN 60947-1
shape of screw head
CROSS HEAD COMPATIBLE WITH PHILIPS NO 1 SCREWDRIVER
contacts material
SILVER ALLOY AG NI
short-circuit protection
10 A CARTRIDGE FUSE TYPE GG CONFORMING TO ENIEC 60947-5-1
[Ith] conventional free air thermal current
10 A CONFORMING TO ENIEC 60947-5-1
[Ui] rated insulation voltage
600 V DEGREE OF POLLUTION 3 CONFORMING TO EN 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO EN 60947-1
[Ie] rated operational current
0.1 A AT 250 V DC-13 R300 CONFORMING TO ENIEC 60947-5-1
electrical durability
1000000 CYCLES AC-15 2 A AT 230 V OPERATING RATE 3600 CYCH LOAD FACTOR 0.5 CONFORMING TO ENIEC 60947-5-1 APPENDIX C
electrical reliability
λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
compatibility code
XD5
