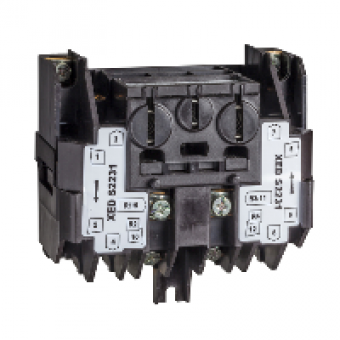

XEDS2121 - spring return contact block - 2-pole - front mounting, Schneider Electric
- Product Code: XEDS2121
- Brand: Schneider Electric
- Availability: To be confirmed
- € 113.33 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XAC
product or component type
CONTACT BLOCK
component name
XEDS
electrical circuit type
POWER CIRCUIT
contact block application
SINGLE SPEED
contact block type
DOUBLE
type of operator
SPRING RETURN
product compatibility
XACD
contacts type and composition
1 NO BRAKE
poles description
2-POLE
contact operation
SNAP ACTION
COMPLEMETARY CHARACTERISTICS
connections - terminals
SCREW CLAMP TERMINALS CONNECTION CAPACITY 1 X 2.5 MM WITH OR WITHOUT CABLE END
mechanical durability
3000000 CYCLES
[Ithe] conventional enclosed thermal current
16 A
[Ui] rated insulation voltage
500 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-1
operating force
28 N
short-circuit protection
<= 6 A FUSE PROTECTION BY CARTRIDGE FUSE TYPE AM
rated operational power in W
1100 W AC-3 AT 400 V CONFORMING TO IEC 60947-3 APPENDIX A
electrical durability
1000000 CYCLES AC-3 OPERATING RATE = 10 CYCMN LOAD FACTOR = 0.4 CONFORMING TO IEC 60947-3 APPENDIX A
terminals description ISO n°1
1-2P
terminals description ISO n°2
15-16NO
product weight
0.09 KG
