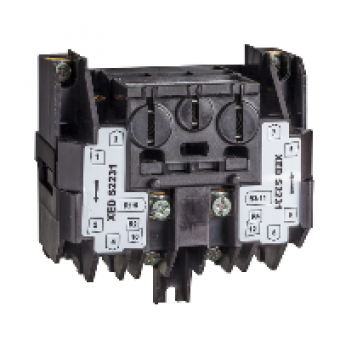

XEDS3231 - spring return contact block - 2-pole - front mounting, Schneider Electric
- Product Code: XEDS3231
- Brand: Schneider Electric
- Availability: To be confirmed
- € 179.33 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XAC
product or component type
CONTACT BLOCK
component name
XEDS
electrical circuit type
POWER CIRCUIT
contact block application
2-SPEED
contact block type
DOUBLE
type of operator
SPRING RETURN
product compatibility
XACD
poles description
2-POLE
contact operation
SNAP ACTION
COMPLEMETARY CHARACTERISTICS
connections - terminals
SCREW CLAMP TERMINALS CONNECTION CAPACITY 1 X 2.5 MM WITH OR WITHOUT CABLE END
mechanical durability
3000000 CYCLES
[Ithe] conventional enclosed thermal current
16 A
[Ui] rated insulation voltage
500 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-1
operating force
31 N
short-circuit protection
<= 6 A FUSE PROTECTION BY CARTRIDGE FUSE TYPE AM
rated operational power in W
2200 W AC-3 AT 400 V CONFORMING TO IEC 60947-3 APPENDIX A
electrical durability
1000000 CYCLES AC-3 OPERATING RATE = 10 CYCMN LOAD FACTOR = 0.4 CONFORMING TO IEC 60947-3 APPENDIX A
terminals description ISO n°1
1-2P
terminals description ISO n°2
5-6P
product weight
0.11 KG
