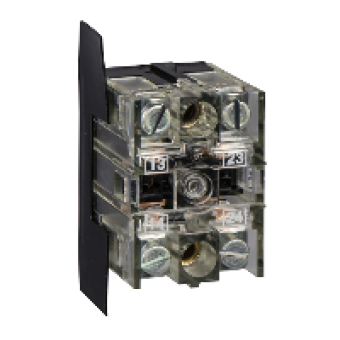

XENB1191 - PENDANT STATION CONTACT 240VAC 3A XAC, Schneider Electric
- Product Code: XENB1191
- Brand: Schneider Electric
- Availability: To be confirmed
- € 17.86 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XAC
product or component type
CONTACT BLOCK
component name
XENB
electrical circuit type
CONTROL CIRCUIT
contact block application
2-SPEED
contact block type
SINGLE
type of operator
SPRING RETURN
product compatibility
XACB
mechanical interlocking
WITHOUT
contacts type and composition
1 C O + 1 NO
mounting of block
FRONT MOUNTING
contact operation
SLOW-BREAK
COMPLEMETARY CHARACTERISTICS
connections - terminals
SCREW CLAMP TERMINALS CONNECTION CAPACITY 1 X 2.5 MM WITH OR WITHOUT CABLE END
mechanical durability
1000000 CYCLES
contact code designation
A300 AC-15 UE = 240 V IE = 3 A CONFORMING TO IEC 60947-5-1 APPENDIX A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
400 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-1
resistance across terminals
<= 25 MOHM
short-circuit protection
10 A FUSE PROTECTION BY CARTRIDGE FUSE TYPE GG
rated operational power in W
31 W DC-13 FOR 1000000 CYCLES OPERATING RATE = 60 CYCMN AT 48 V LOAD FACTOR = 0.5 INDUCTIVE LOAD CONFORMING TO IEC 60947-5-1 APPENDIX C
rated operational power in VA
140 VA AC-15 FOR 1000000 CYCLES OPERATING RATE = 60 CYCMN AT 24 V 5060 HZ LOAD FACTOR = 0.5 INDUCTIVE LOAD
terminals description ISO n°1
13-14-31-32OF
terminal identifier
11-12NC
product weight
0.05 KG
