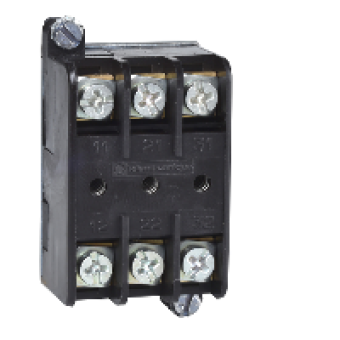

XENT1192 - single isolating block XEN-T - for control circuit, Schneider Electric
- Product Code: XENT1192
- Brand: Schneider Electric
- Availability: To be confirmed
- € 24.01 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XAC
product or component type
ISOLATING SWITCH
component name
XENT
electrical circuit type
CONTROL CIRCUIT
contact block application
EMERGENCY STOP PUSHBUTTON
contact block type
SINGLE
product compatibility
XACA
contacts type and composition
3 NC
mounting of block
FRONT MOUNTING
contact operation
SLOW-BREAK
COMPLEMETARY CHARACTERISTICS
connections - terminals
SCREW CLAMP TERMINALS CONNECTION CAPACITY 1 X 0.5...1 X 2.5 MM WITHOUT CABLE END
mechanical durability
1000000 CYCLES
contact code designation
A600 AC-15 UE = 240 V IE = 3 A CONFORMING TO IEC 60947-5-1 APPENDIX A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
400 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-1
resistance across terminals
<= 25 MOHM
operating force
14 N
short-circuit protection
10 A FUSE PROTECTION BY CARTRIDGE FUSE TYPE GG
rated operational power in W
40 W DC-13 FOR 1000000 CYCLES OPERATING RATE = 60 CYCMN AT 120 V LOAD FACTOR = 0.5 INDUCTIVE LOAD CONFORMING TO IEC 60947-5-1 APPENDIX C
product weight
0.05 KG
