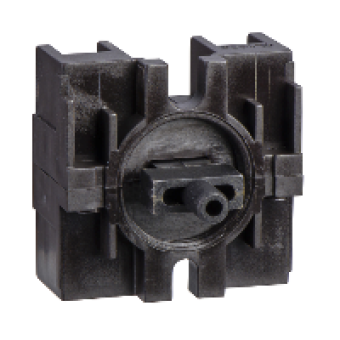

XESB2011 - PENDANT STATION CONTACT 600VAC 10A XE, Schneider Electric
- Product Code: XESB2011
- Brand: Schneider Electric
- Availability: To be confirmed
- € 6.49 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XAC
product or component type
CONTACT BLOCK
component name
XESB
electrical circuit type
CONTROL CIRCUIT
contact block application
SINGLE SPEED
contact block type
SINGLE
type of operator
SPRING RETURN
product compatibility
XAB91..
mechanical interlocking
WITHOUT
mounting of block
FRONT MOUNTING
contact operation
SNAP ACTION
COMPLEMETARY CHARACTERISTICS
connections - terminals
SCREW CLAMP TERMINALS CONNECTION CAPACITY 1 X 2.5 MM WITH OR WITHOUT CABLE END
mechanical durability
1000000 CYCLES
contact code designation
A300 AC-15 UE = 240 V IE = 3 A CONFORMING TO IEC 60947-5-1 APPENDIX A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
500 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-1
resistance across terminals
<= 25 MOHM
operating force
15 N
short-circuit protection
10 A FUSE PROTECTION BY CARTRIDGE FUSE TYPE GG
rated operational power in W
140 W DC-13 FOR 1000000 CYCLES OPERATING RATE = 60 CYCMN AT 24 V LOAD FACTOR = 0.5 INDUCTIVE LOAD CONFORMING TO IEC 60947-5-1 APPENDIX C
rated operational power in VA
100 VA AC-15 FOR 1000000 CYCLES OPERATING RATE = 60 CYCMN AT 48 V 5060 HZ LOAD FACTOR = 0.5 INDUCTIVE LOAD
terminals description ISO n°1
3-4-1-2OF
terminal identifier
11-12NC
