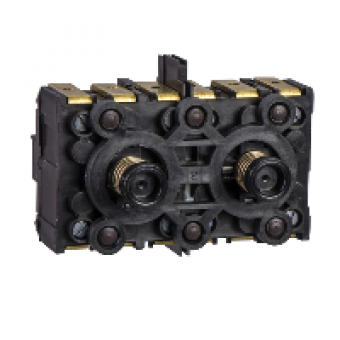

XESD2201 - spring return contact block - 3 NO - front mounting 40 mm centres, Schneider Electric
- Product Code: XESD2201
- Brand: Schneider Electric
- Availability: To be confirmed
- € 60.31 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XAC
product or component type
CONTACT BLOCK
component name
XESD
electrical circuit type
POWER CIRCUIT
contact block application
SINGLE SPEED
contact block type
DOUBLE
type of operator
2 SPRING RETURN
product compatibility
XACB
mechanical interlocking
WITH
contacts type and composition
3 NO
poles description
3-POLE
mounting of block
FRONT MOUNTING
contact operation
SNAP ACTION
COMPLEMETARY CHARACTERISTICS
connections - terminals
SCREW CLAMP TERMINALS CONNECTION CAPACITY 1 X 2.5 MM WITH OR WITHOUT CABLE END
horizontal fixing centres
40 MM
mechanical durability
1000000 CYCLES
[Ithe] conventional enclosed thermal current
20 A
[Ui] rated insulation voltage
300 V CONFORMING TO CSA
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-1
operating force
32 N
short-circuit protection
<= 12 A FUSE PROTECTION BY CARTRIDGE FUSE TYPE AM
rated operational power in W
3000 W AC-3 AT 240 V
rated power in hp
3 HP AT 240 V
electrical durability
1000000 CYCLES AC-3 3000 W AT 400 V OPERATING RATE = 10 CYCMN LOAD FACTOR = 0.4 CONFORMING TO IEC 60947-3 APPENDIX A
terminals description ISO n°1
13-14NO
terminals description ISO n°2
53-54NO
terminal identifier
11-12NC
product weight
0.2 KG
