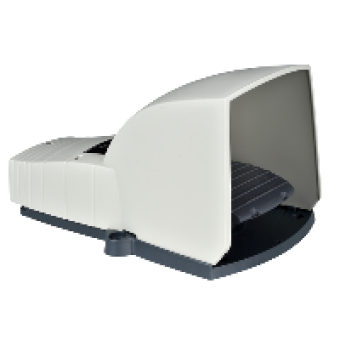

XPEG310 - single foot switch - IP66 - with cover - plastic - grey - 1 NC + 1 NO, Schneider Electric
- Product Code: XPEG310
- Brand: Schneider Electric
- Availability: To be confirmed
- € 44.27 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XPE
product or component type
FOOT SWITCH
material
PLASTIC
foot switch type
SINGLE FOOT SWITCH
device short name
XPEG
provided equipment
COVER
trigger mechanism
WITHOUT
contact operation
1 STEP
contacts type and composition
1 NC + 1 NO
colour
GREY
COMPLEMETARY CHARACTERISTICS
positive opening
WITH CONFORMING TO ENIEC 60947-5-1 APPENDIX K
connections - terminals
SCREW CLAMP TERMINAL <= 1 X 2.5 MM WITH OR WITHOUT CABLE END
mechanical durability
10000000 CYCLES
[Ie] rated operational current
3 A 240 V AC-15 A300
[Ui] rated insulation voltage
500 V DEGREE OF POLLUTION 3 CONFORMING TO ENIEC 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO ENIEC 60947-1
resistance across terminals
<= 25 MOHM CONFORMING TO IEC 60255-7 CATEGORY 3
short-circuit protection
10 A BY CARTRIDGE FUSE TYPE GG CONFORMING TO ENIEC 60947-5-1
rated operational power in W
10 W DC-13 OPERATING RATE 60 CYCMN 5000000 CYCLES 24 V LOAD FACTOR 0.5 CONFORMING TO ENIEC 60947-5-1 APPENDIX C
product weight
0.69 KG
compatibility code
XPEG
