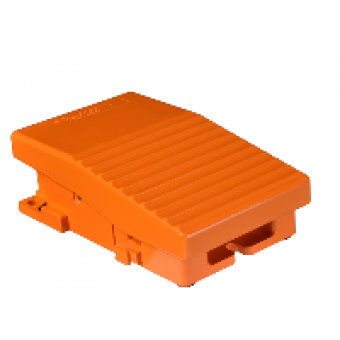

XPER229 - single foot switch - IP66 - without cover - metallic - orange - 2 NC + 2 NO, Schneider Electric
- Product Code: XPER229
- Brand: Schneider Electric
- Availability: To be confirmed
- € 124.07 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XPE
product or component type
FOOT SWITCH
material
METAL
foot switch type
SINGLE FOOT SWITCH
device short name
XPER
trigger mechanism
WITHOUT
contact operation
ANALOG OUTPUT
contacts type and composition
2 NC + NO
colour
ORANGE
COMPLEMETARY CHARACTERISTICS
positive opening
WITH CONFORMING TO ENIEC 60947-5-1 APPENDIX K
[Us] rated supply voltage
24...48 V DC
supply voltage limits
19...58 V
current consumption
4 MA NO LOAD
output current drift
-12...2 AT -25...70 DC
connections - terminals
SCREW CLAMP TERMINAL <= 1 X 2.5 MM WITH OR WITHOUT CABLE END
cable entry
2 ENTRIES TPD FOR PG 16 CBL GD
mechanical durability
15000000 CYCLES
[Ie] rated operational current
3 A 240 V AC-15 A300
[Ui] rated insulation voltage
500 V DEGREE OF POLLUTION 3 CONFORMING TO ENIEC 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO ENIEC 60947-1
resistance across terminals
<= 25 MOHM CONFORMING TO IEC 60255-7 CATEGORY 3
short-circuit protection
10 A BY CARTRIDGE FUSE TYPE GG CONFORMING TO ENIEC 60947-5-1
rated operational power in W
10 W DC-13 OPERATING RATE 60 CYCMN 5000000 CYCLES 24 V LOAD FACTOR 0.5 CONFORMING TO ENIEC 60947-5-1 APPENDIX C
product weight
1.2 KG
compatibility code
XPER
