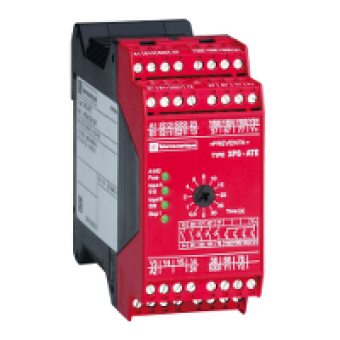

XPSATE3710P - module XPSAT - Emergency stop - 230 V AC, Schneider Electric
- Product Code: XPSATE3710P
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
PREVENTA SAFETY AUTOMATION
product or component type
PREVENTA SAFETY MODULE
safety module name
XPSATE
safety module application
F EMERGENCY STOP+SWITCH MNTRG
function of module
MRGC STOP BUTTON W 2 NC CTCTS
safety level
CAN REACH PL DCATEGORY 3 CONFORMING TO ENISO 13849-1 TIME DELAY SAFETY OUTPUTS
safety reliability data
DC > 99 CONFORMING TO ENISO 13849-1 INSTANTANEOUS SAFETY OUTPUTS
type of start
CONFIGURABLE
connections - terminals
CAPTIVE SCREW CLAMP TERMINALS REMOVABLE TERMINAL BLOCK CLAMPING CAPACITY 1 X 0.2...1 X 2.5 MM FLEXIBLE CABLE WITH CABLE END WITH DOUBLE BEZEL
output type
RELAY INSTANTANEOUS OPENING 2 NO VOLT-FREE
number of additional circuits
3 SOLID STATE OUTPUTS
[Us] rated supply voltage
230 V AC - 20..10
COMPLEMETARY CHARACTERISTICS
synchronisation time between inputs
75 MS
supply frequency
50 60 HZ
power consumption in W
<= 8 W
input protection type
INTERNAL ELECTRONIC
time delay range
0...30 S
[Uc] control circuit voltage
48 V DC
breaking capacity
C300 : 180 VA, AC-15 (holding) for relay output
breaking capacity
1 A AT 24 V DC-13 TIME CONSTANT 50 MS FOR RELAY OUTPUT
output thermal current
2.5 A FOR TIME DELAY OUTPUTS
[Ith] conventional free air thermal current
8 A
associated fuse rating
4 A FUSE TYPE GG FOR TIME DELAY OUTPUTS CONFORMING TO ENIEC 60947-5-1 DIN VDE 0660 PART 200
minimum output current
10 MA FOR RELAY OUTPUT
minimum output voltage
17 V FOR RELAY OUTPUT
response time on input open
<= 20 MS
[Ui] rated insulation voltage
300 V (degree of pollution: 2) conforming to IEC 60947-5-1
[Uimp] rated impulse withstand voltage
4 kV overvoltage category III conforming to IEC 60947-5-1
local signalling
4 LEDS
mounting support
35 MM SYMMETRICAL DIN RAIL
product weight
0.38 KG
