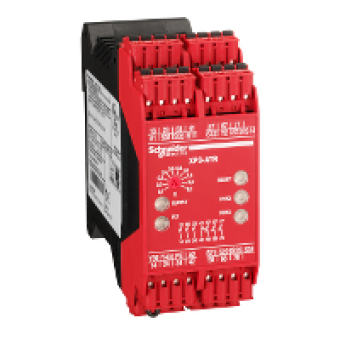

XPSATR11530P - module XPSATR - Emergency stop and protective guard - 24V DC time delay 30s, Schneider Electric
- Product Code: XPSATR11530P
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
PREVENTA SAFETY AUTOMATION
product or component type
PREVENTA SAFETY MODULE
safety module name
XPSATR
safety module application
F MRGC SP+PROTCTV GUARD APPS
function of module
MRGC STOP MNTRG 1 CH WIRING
safety level
CAN REACH PL ECATEGORY 4 CONFORMING TO ENISO 13849-1 INSTANTANEOUS SAFETY OUTPUTS
safety reliability data
DC > 99 CONFORMING TO ENISO 13849-1
type of start
AUTOMATIC
connections - terminals
CAPTIVE SCREW CLAMP TERMINALS REMOVABLE TERMINAL BLOCK CLAMPING CAPACITY 1 X 0.25...1 X 2.5 MM FLEXIBLE CABLE WITH CABLE END WITHOUT BEZEL
output type
RELAY INSTANTANEOUS OPENING 3 NO VOLT-FREE
number of additional circuits
1 NC
[Us] rated supply voltage
24 V DC - 15..10
COMPLEMETARY CHARACTERISTICS
synchronisation time between inputs
1 S
power consumption in W
2.8 W DC
input protection type
INTERNAL ELECTRONIC
time delay range
0...30 S
[Uc] control circuit voltage
24 V DC
breaking capacity
3 A AT 24 V DC-13 FOR RELAY OUTPUT
output thermal current
6 A FOR INSTANTANEOUS AND TIME DELAY OUTPUTS
[Ith] conventional free air thermal current
8 A
associated fuse rating
6 A FUSE TYPE GG FOR INSTANTANEOUS AND TIME DELAY OUTPUTS CONFORMING TO ENIEC 60947-5-1 DIN VDE 0660 PART 200
minimum output current
10 MA FOR RELAY OUTPUT
minimum output voltage
17 V FOR RELAY OUTPUT
response time on input open
<= 20 MS
[Ui] rated insulation voltage
300 V
[Uimp] rated impulse withstand voltage
4 KV OVERVOLTAGE CATEGORY III CONFORMING TO ENIEC 60947-5-1 DIN VDE 0110 PARTS 1 2
local signalling
5 LEDS
mounting support
35 MM SYMMETRICAL DIN RAIL
product weight
0.33 KG
