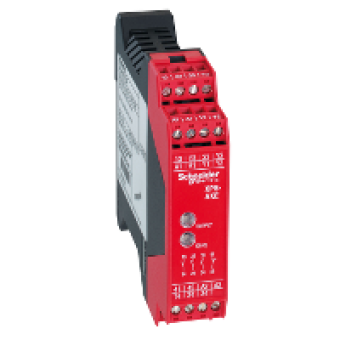

XPSAXE5120C - module XPSAXE - stop and switch monitoring - 24 V DC, Schneider Electric
- Product Code: XPSAXE5120C
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
PREVENTA SAFETY AUTOMATION
product or component type
PREVENTA SAFETY MODULE
safety module name
XPSAXE
safety module application
F EMERGENCY STOP+SWITCH MNTRG
safety level
CAN REACH PL ECATEGORY 4 CONFORMING TO ENISO 13849-1
safety reliability data
DC > 99 CONFORMING TO ENISO 13849-1
connections - terminals
SPRING TERMINALS REMOVABLE TERMINAL BLOCK CLAMPING CAPACITY 1 X 0.2...1 X 2.5 MM SOLID CABLE WITHOUT CABLE END
output type
RELAY INSTANTANEOUS OPENING 3 NO VOLT-FREE
number of additional circuits
1 NC
[Us] rated supply voltage
24 V DC - 15..10
COMPLEMETARY CHARACTERISTICS
synchronisation time between inputs
< 0.5 S
supply frequency
50 60 HZ
power consumption in VA
<= 4 VA DC
[Uc] control circuit voltage
24 V DC
breaking capacity
B300 : 3600 VA, AC-15 (inrush) for relay output
breaking capacity
1.5 A AT 24 V DC-13 TIME CONSTANT 50 MS FOR RELAY OUTPUT
output thermal current
6 A FOR INSTANTANEOUS AND TIME DELAY OUTPUTS
associated fuse rating
6 A FUSE TYPE GG FOR INSTANTANEOUS OUTPUTS
minimum output current
10 MA FOR RELAY OUTPUT
minimum output voltage
17 V FOR RELAY OUTPUT
response time on input open
<= 80 MS
[Ui] rated insulation voltage
300 V (degree of pollution: 2) conforming to IEC 60947-5-1
[Uimp] rated impulse withstand voltage
4 kV overvoltage category III conforming to IEC 60947-5-1
local signalling
2 LEDS
mounting support
35 MM SYMMETRICAL DIN RAIL
product weight
0.229 KG
