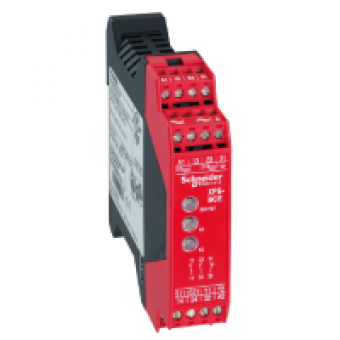

XPSBCE3410P - module XPSBCE - two-hand control - 115 V AC, Schneider Electric
- Product Code: XPSBCE3410P
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
PREVENTA SAFETY AUTOMATION
product or component type
PREVENTA SAFETY MODULE
safety module name
XPSBCE
safety module application
ELC MNTRG OF 2-HAND CTRL STTS
function of module
MNTRG TWO-HAND CONTROL STATION
safety level
CAN REACH PL ECATEGORY 4 CONFORMING TO ENISO 13849-1
safety reliability data
DC > 99 CONFORMING TO ENISO 13849-1
connections - terminals
CAPTIVE SCREW CLAMP TERMINALS REMOVABLE TERMINAL BLOCK CLAMPING CAPACITY 1 X 0.25...1 X 1.5 MM FLEXIBLE CABLE WITH CABLE END WITH BEZEL
output type
RELAY 2 NO VOLT-FREE
number of additional circuits
1 NC
[Us] rated supply voltage
115 V AC - 15..15
COMPLEMETARY CHARACTERISTICS
synchronisation time between inputs
0.5 S
supply frequency
50 60 HZ
power consumption in VA
<= 4 VA
input protection type
INTERNAL ELECTRONIC
number of inputs
1 NC + NO
input compatibility
TWO-HAND CONTROL CONFORMING TO EN 574ISO 13851-III C
[Uc] control circuit voltage
24 V DC
breaking capacity
B300 : inrush 3600 VA AC-15 for relay output
breaking capacity
1.5 A / 24 V - L/R = 50 ms, DC-13 for relay output
[Ith] conventional free air thermal current
<= 6 A
associated fuse rating
6 A GG FOR RELAY OUTPUT CONFORMING TO ENIEC 60947-5-1 DIN VDE 0660 PART 200
minimum output current
10 MA FOR RELAY OUTPUT
minimum output voltage
17 V FOR RELAY OUTPUT
response time on input open
<= 50 MS
[Ui] rated insulation voltage
300 V DEGREE OF POLLUTION 2 CONFORMING TO IEC 60947-5-1
[Uimp] rated impulse withstand voltage
4 kV overvoltage category III, conforming to IEC 60947-5-1
local signalling
3 LEDS
mounting support
35 MM SYMMETRICAL DIN RAIL
product weight
0.322 KG
