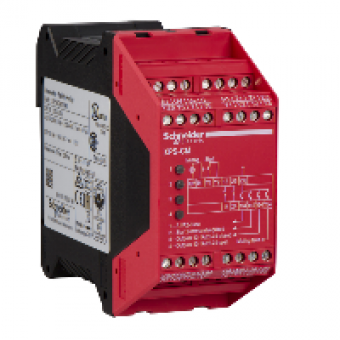

XPSCM1144 - module XPS-CM - single-beam photo-electric sensors - 24 V DC, Schneider Electric
- Product Code: XPSCM1144
- Brand: Schneider Electric
- Availability: To be confirmed
- € 293.02 Ex Tax:
MAIN CHARACTERISTICS
range of product
PREVENTA SAFETY DETECTION
product or component type
SAFETY MODULE
safety module name
XPSCM
safety module application
F MNTRG OF 1 BEAM PH-ELEC SSR
function of module
BUILT-IN MUTING
safety level
CAN REACH CATEGORY 2 CONFORMING TO ENISO 13849-1 WITH THE APPROPRIATE CONTROL SYSTEM AND CORRECTLY WIRED
safety reliability data
MTTFD = 16.6 YEARS CONFORMING TO ENISO 13849-1
number of inputs
2 TERMINALS MA MB FOR MUTING FUNCTION
input voltage
24 V DC FOR SENSOR
input compatibility
XC LIMIT SWITCH FOR MUTING FUNCTION
connections - terminals
CAPTIVE SCREW CLAMP TERMINALS CLAMPING CAPACITY 1 X 0.14...1 X 2.5 MM SOLID OR FLEXIBLE CABLE WITHOUT CABLE END
output type
RELAY 2 NO 13-14 23-24 VOLT-FREE
number of additional circuits
0
[Us] rated supply voltage
24 V DC - 20..20
COMPLEMETARY CHARACTERISTICS
sensor power supply
24 V DC TERMINALS U+ U-
supply current for sensors
< 200 MA
input current
< 200 MA FOR MUTING FUNCTION
synchronisation time between inputs
3 S +- 20 FOR THE ACTIVATION OF THE MAMB MUTING SIGNAL
muting maximum duration
60 S - 10..30
line resistance
<= 10 OHM FOR SENSOR POWER SUPPLY
breaking capacity
C300 : holding 180 VA AC-15 for relay output
breaking capacity
20 mA / 24 V for solid state output
associated fuse rating
4 A GG FOR RELAY OUTPUT CONFORMING TO DIN VDE 0660 PART 200
minimum output current
10 MA FOR RELAY OUTPUT
minimum output voltage
17 V FOR RELAY OUTPUT
response time on input open
<= 25 MS
local signalling
1 LED FUNCTION ELECTRONIC INTERNAL FUSE STATUS
output thermal current
11 A MAXIMUM
power consumption in W
<= 15 W
protection type
ELECTRONIC INTERNAL FUSE
[Ui] rated insulation voltage
300 V DEGREE OF POLLUTION 2 CONFORMING TO DIN VDE 0110 PARTS 1 AND 2
[Uimp] rated impulse withstand voltage
4 KV OVERVOLTAGE CATEGORY III CONFORMING TO DIN VDE 0110 PARTS 1 AND 2
