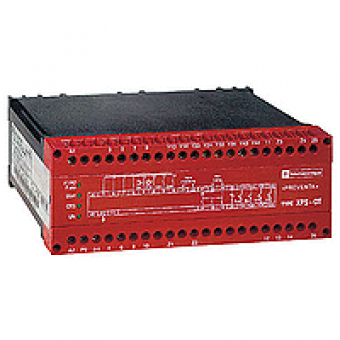

XPSOT3444 - module XPSOT - stop at top dead center with automatic overtravel - 115 V AC, Schneider Electric
- Product Code: XPSOT3444
- Brand: Schneider Electric
- Availability: To be confirmed
- € 749.75 Ex Tax:
MAIN CHARACTERISTICS
range of product
PREVENTA SAFETY AUTOMATION
product or component type
PREVENTA SAFETY MODULE
safety module name
XPSOT
safety module application
SFT ST W AUTO OVTRL MNTRG+CTRL
function of module
SFT ST W AUTO OVTRL MNTRG+CTRL
safety level
CAN REACH PL ECATEGORY 4 CONFORMING TO ENISO 13849-1
safety reliability data
MTTFD = 60.9 YEARS CONFORMING TO ENISO 13849-1
[Us] rated supply voltage
115 V AC - 15..15
output type
RELAY 3 NO VOLT-FREE
number of additional circuits
4 SOLID STATE OUTPUTS
enclosure type
REMOVABLE
COMPLEMETARY CHARACTERISTICS
supply frequency
50 60 HZ
power consumption in VA
< 12 VA
input protection type
INTERNAL ELECTRONIC
breaking capacity
C300 : holding 180 VA AC-15 for relay output
breaking capacity
10 mA / 48 V for solid state output circuit
[Ith] conventional free air thermal current
<= 2.5 A
associated fuse rating
4 A GG FOR RELAY OUTPUT CONFORMING TO ENIEC 60947-5-1 DIN VDE 0660 PART 200
minimum output current
10 MA FOR RELAY OUTPUT
minimum output voltage
17 V FOR RELAY OUTPUT
response time on input open
<= 20 MS
[Ui] rated insulation voltage
300 V DEGREE OF POLLUTION 2 CONFORMING TO IEC 60647-5-1 DIN VDE 0110 PART 1
[Uimp] rated impulse withstand voltage
4 KV OVERVOLTAGE CATEGORY III CONFORMING TO IEC 60647-5-1 DIN VDE 0110 PART 1
local signalling
4 LEDS
enclosure material
POLYCARBONATE
number of terminal blocks
42
connections - terminals
CAPTIVE SCREW CLAMP TERMINALS 2 X 0.5...2 X 1.5 MM WITH CABLE END
mounting support
35 MM SYMMETRICAL DIN RAIL
depth
118 MM
height
73 MM
width
200 MM
product weight
1.1 KG
