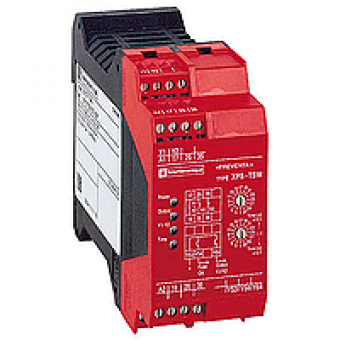

XPSTSW3742P - module XPSTS - safety switchover contact - 230 V AC, Schneider Electric
- Product Code: XPSTSW3742P
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
PREVENTA SAFETY AUTOMATION
product or component type
PREVENTA SAFETY TIME DELAY MOD
safety module name
XPSTSW
safety module application
F APP W SAFETY SWITCHOVER CTCT
function of module
MONITORING SAFETY TIME DELAYS
safety level
CAN REACH PL DCATEGORY 3 CONFORMING TO ENISO 13849-1
safety reliability data
MTTFD = 126 YEARS CONFORMING TO ENISO 13849-1
[Us] rated supply voltage
230 V DC - 15..15
output type
RELAY 1 NO + 2 NC VOLT-FREE
number of additional circuits
2 SOLID STATE OUTPUTS
COMPLEMETARY CHARACTERISTICS
supply frequency
50 60 HZ
power consumption in VA
<= 5.5 VA DC
input protection type
INTERNAL ELECTRONIC
time delay
1..31 S CONFIGURABLE
impulse duration
0.1...3.1 S
breaking capacity
C300 : holding 180 VA AC-15 for relay output
breaking capacity
10 mA / 48 V
[Ith] conventional free air thermal current
<= 6 A FOR RELAY OUTPUT
associated fuse rating
4 A GG FOR RELAY OUTPUT CONFORMING TO ENIEC 60947-5-1 DIN VDE 0660 PART 200
minimum output current
10 MA FOR RELAY OUTPUT
minimum output voltage
17 V FOR RELAY OUTPUT
[Ui] rated insulation voltage
300 V DEGREE OF POLLUTION 2 CONFORMING TO IEC 60947-5-1
[Uimp] rated impulse withstand voltage
4 kV overvoltage category III, conforming to IEC 60947-5-1
local signalling
4 LEDS
connections - terminals
CAPTIVE SCREW CLAMP TERMINALS REMOVABLE TERMINAL BLOCK FLEXIBLE CABLE 0.2...1.5 MM WITHOUT CABLE END 2 WIRES
mounting support
35 MM SYMMETRICAL DIN RAIL
depth
114 MM
height
99 MM
width
45 MM
product weight
0.36 KG
