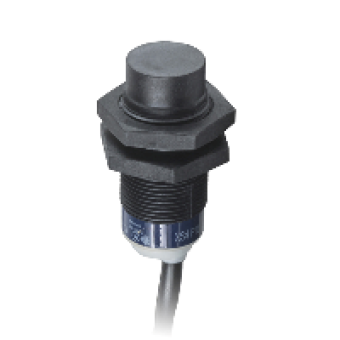

XS4P18MB230 - inductive sensor XS4 M18 - L62mm - PPS - Sn8mm - 24..240VAC/DC - cable 2m, Schneider Electric
- Product Code: XS4P18MB230
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
OSISENSE XS
series name
GENERAL PURPOSE
sensor type
INDUCTIVE PROXIMITY SENSOR
device application
NOT APPLICABLE
sensor name
XS4
sensor design
CYLINDRICAL M18
size
62 MM
body type
FIXED
detector flush mounting acceptance
NON FLUSH MOUNTABLE
material
PLASTIC
type of output signal
DISCRETE
wiring technique
2-WIRE
[Sn] nominal sensing distance
8 MM
discrete output function
1 NC
output circuit type
AC DC
electrical connection
CABLE
cable length
2 M
[Us] rated supply voltage
24...240 V ACDC 5060 HZ
switching capacity in mA
5..200 MA DC
IP degree of protection
IP68 DOUBLE INSULATION CONFORMING TO IEC 60529
COMPLEMETARY CHARACTERISTICS
thread type
M18 X 1
detection face
FRONTAL
front material
PPS
enclosure material
PPS
sensing range
> 4...8 MM
operating zone
0...6.4 MM
differential travel
1..15 PT OF SR
cable composition
2 X 0.34 MM2
wire insulation material
PVR
status LED
1 LED YELLOW FOR OUTPUT STATE
supply voltage limits
20..264 V ACDC
residual current
<= 0.6 MA OPEN STATE
switching frequency
<= 2000 HZ DC
voltage drop
<= 5.5 V CLOSED
delay first up
<= 40 MS
delay response
<= 0.2 MS
delay recovery
<= 0.2 MS
marking
CE
threaded length
52 MM
height
18 MM
length
62 MM
product weight
0.1 KG
