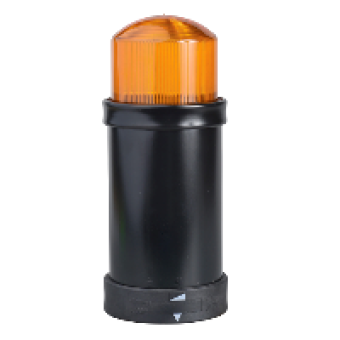

XVBC8B5 - INDICATING BANK LENS 24V 10J +OPTIONS, Schneider Electric
- Product Code: XVBC8B5
- Brand: Schneider Electric
- Availability: To be confirmed
- € 104.84 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XVB UNIVERSAL
product or component type
INDICATOR BANK
beacon or indicator bank unit type
ILLUMINATED UNIT
signalling type
FLASHING
mounting diameter
70 MM
component name
XVBC
material
POLYCARBONATE
light source
ORANGE INTEGRAL FLASH DISCHARGE TUBE
bulb type
FLASH DISCHARGE TUBE
[Us] rated supply voltage
24 V ACDC
flash energy
10 J
COMPLEMETARY CHARACTERISTICS
assembly style
CUSTOMER ASMB UP TO 5 UNITS
connections - terminals
SCREW CLAMP TERMINALS <= 1 X 1.5 MM WITH CABLE END
[Ui] rated insulation voltage
250 V CONFORMING TO IEC 60947-1
nominal voltage limit
0.85...1.1 UN CONFORMING TO IEC 60947-5-1
current consumption
< 1300 MA AC
[Uimp] rated impulse withstand voltage
4 KV CONFORMING TO IEC 60947-1
flashing frequency
1 HZ
CAD overall width
70 MM
CAD overall height
157 MM
CAD overall depth
70 MM
product weight
0.305 KG
