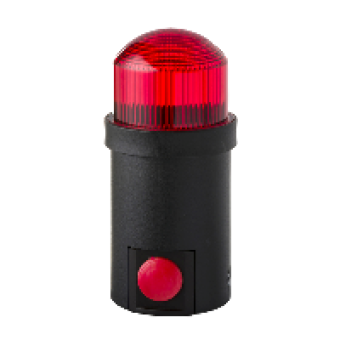

XVDLS34 - MINIATURE INDICATING BEACON 250V 5W, Schneider Electric
- Product Code: XVDLS34
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XVD OPTIMUM
product or component type
COMPLETE MINIATURE BEACON
beacon or indicator bank unit type
BASE UNIT WITH DIRECT FIXING MODE
signalling type
STEADY
mounting diameter
45 MM
component name
XVDLS
material
GLASS REINFORCED POLYAMIDE BASE UNIT
light source
RED BULB NOT INCLUDED
bulb type
INCANDESCENT WITH BA 15D
[Us] rated supply voltage
<= 230 V
power dissipation in W
< 5 W
COMPLEMETARY CHARACTERISTICS
connections - terminals
SCREW CLAMP TERMINALS CONNECTION CAPACITY <= 1 X 1.5 MM WITH CABLE END
cable entry
1 entry tapped for Pg 7
[Ui] rated insulation voltage
250 V CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
4 KV CONFORMING TO IEC 60947-1
CAD overall width
45 MM
CAD overall height
104 MM
CAD overall depth
45 MM
terminals description ISO n°1
COM-1PW
product weight
0.08 KG
