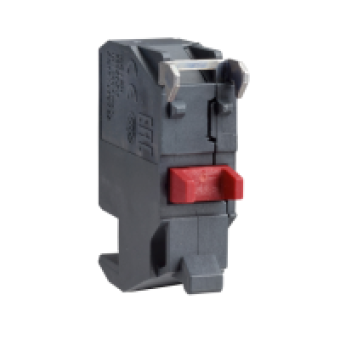

ZBE1024 - single contact block for head Ø22 1NC silver alloy for plug-in connector, Schneider Electric
- Product Code: ZBE1024
- Brand: Schneider Electric
- Availability: To be confirmed
- € 2.67 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB4
product or component type
CONTACT BLOCK
device short name
ZBE
sale per indivisible quantity
5
IP degree of protection
IP20 IEC 60529
contacts type and composition
1 NC
contact operation
SLOW-BREAK
contact block type
SINGLE
contacts usage
STANDARD CONTACTS
connections - terminals
PLUG-IN CONNECTOR
COMPLEMETARY CHARACTERISTICS
product weight
0.011 KG
positive opening
WITH ENIEC 60947-5-1 APPENDIX K
operating travel
1.5 MM NC CHANGING ELECTRICAL STATE
operating force
2 N NC CHANGING ELECTRICAL STATE
mechanical durability
10000000 CYCLES
contacts material
SILVER ALLOY AG NI
short-circuit protection
4 A CARTRIDGE FUSE GG ENIEC 60947-5-1
[Ith] conventional free air thermal current
10 A ENIEC 60947-5-1
[Ui] rated insulation voltage
250 V 3 EN 60947-1
[Uimp] rated impulse withstand voltage
4 KV EN 60947-1
[Ie] rated operational current
3 A 240 V AC-15 A300 ENIEC 60947-5-1
electrical durability
1000000 CYCLES AC-15 1 A 230 V 3600 CYCH 0.5 ENIEC 60947-5-1 APPENDIX C
electrical reliability
λ < 10exp(-7) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
mounting of block
FRONT MOUNTING
condition of use
MOUNTING ON PUSH-BUTTON COLLAR
electrical composition code
C11 <= 3
compatibility code
ZBE
