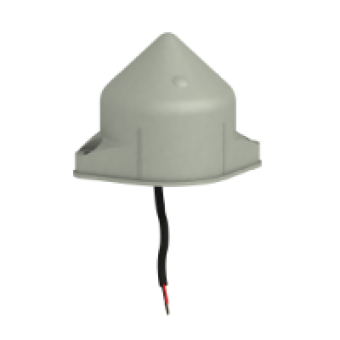

ZBRA1 - Relay Antenna AC/DC 5m cable output, Schneider Electric
- Product Code: ZBRA1
- Brand: Schneider Electric
- Availability: To be confirmed
- € 49.89 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB5R
product or component type
WIRELESS+BATTERYLESS RANGE
device short name
ZBRA
product destination
FOR XB5R+XB4R DM 22 MM CTRL UT
control station application
TRANSCEIVER EMSN+RECEPTION
colour of base of enclosure
BLACK RAL 9011
colour of cover
TRANSPARENT
material
POLYCARBONATE
frequency
2405 MHZ FOR TRANSMITTER
emission class
5M00G7W
antenna type
OMNIDIRECTIONAL
COMPLEMETARY CHARACTERISTICS
communication port protocol
Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
antenna gain
0 DBI
maximum sensing distance
300 M TRANSMITTER IN BOX TYPE XAL D RECEIVER IN METAL ENCLOSURE AND USE RELAY-ANTENNA
emission power
< 3 MW
[Us] rated supply voltage
24...240 V ACDC 5060 HZ - 10...10
power consumption in W
<= 4 W ACDC
operating position
VERTICAL
status LED
1 LED GREEN FOR POWER ON
overvoltage category
III CONFORMING TO IEC 60664-1
rated short-duration power frequency withstand voltage
4 KV 50 HZ CONFORMING TO ENIEC 60947-5-1
[Uimp] rated impulse withstand voltage
4 KV
electrical connection
2 CONDUCTORS CABLE FLEXIBLE WITH 5 M LENGTH CROSS SECTION 0.34 MM CONFORMING TO ENIEC 60947-1
tightening torque
0.6 N.M CONFORMING TO ENIEC 60947-1
housing material
SELF-EXTINGUISHING PLASTIC
short-circuit protection
0.4 A FUSE FAST BLOW
rated power in W
<= 1 MW
number of channels
1
modulation technique
O-QPSK
bandwidth
5 MHZ
CAD overall height
67 MM
CAD overall width
93 MM
product weight
0.2 KG
