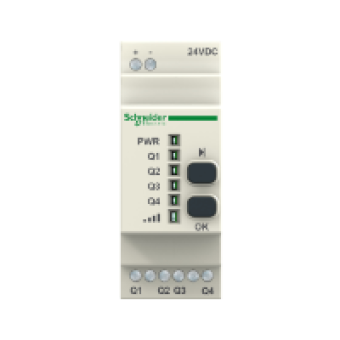

ZBRRC - Programmable receiver - 4 PNP - 200 mA - 24 V DC - 2 pusbuttons - 6 LEDs, Schneider Electric
- Product Code: ZBRRC
- Brand: Schneider Electric
- Availability: To be confirmed
- € 104.33 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY
product or component type
PROGRAMMABLE RECEIVER
device short name
ZBRRC
product specific application
INTERFACE TO PLC
function of module
MONOSTABLE
reset time
2 MS TIME DELAY
transmission frequency
2405 MHZ
emission class
5M00G7W
antenna type
OMNIDIRECTIONAL
COMPLEMETARY CHARACTERISTICS
output type
TRANSISTOR PNP
output contacts
4 PNP
time delay range
0.5 S TOLERANCE - 15..15
maximum switching current
0.2 MA
[Us] rated supply voltage
24 V DC - 15...20
voltage drop
<= 2 V DC AT 2 A
communication port protocol
ZIGBEE GREEN POWER AT 2.4 GHZ CONFORMING TO IEEE 802.15.4
maximum sensing distance
100 M IN FREE FIELD
response time
< 30 MS AFTER TRANSMITTER CLICKS
channels utilisation
<= 32 PER RECEIVER
utilisation category
DC-13 CONFORMING TO ENIEC 60947-5-1
power consumption in VA
20 VA DC
power consumption in W
20 W
breaking capacity
4.8 W PER OUTPUT
short-circuit protection
0.4 A FUSE FAST BLOW
operating position
ANY POSITION WITHOUT DERATING
electrical connection
1 CONDUCTOR CABLE 0.14...2.5 MM - AWG 26...AWG 14 - SOLID - WITHOUT CABLE END CONFORMING TO IEC 60947-1
tightening torque
0.5...1 N.M CONFORMING TO ENIEC 60947-1
housing material
SELF-EXTINGUISHING PLASTIC
status LED
1 LED COLOR GREEN FOR POWER ON
rated short-duration power frequency withstand voltage
1 KV 50 HZ CONFORMING TO ENIEC 60947-5-1
[Uimp] rated impulse withstand voltage
0.8 KV
surge withstand
0.5 KV DIFFERENTIAL MODE CONFORMING TO IEC 61000-4-5
rated power in W
<= 1 MW
number of channels
1
modulation technique
O-QPSK
bandwidth
5 MHZ
antenna gain
0 DBI
width
36 MM
height
108 MM
depth
75 MM
product weight
0.13 KG
