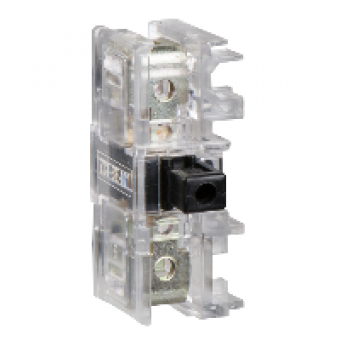

ZC1BD137 - push button contact block ZC1 - screw clamp terminals, Schneider Electric
- Product Code: ZC1BD137
- Brand: Schneider Electric
- Availability: To be confirmed
- € 67.23 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB4
product or component type
CONTACT BLOCK
device short name
ZC1
sale per indivisible quantity
1
contact operation
SLOW-BREAK
COMPLEMETARY CHARACTERISTICS
connections - terminals
SCREW CLAMP TERMINALS
product weight
0.05 KG
operating travel
4.3 MM TOTAL TRAVEL
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO EN 60947-1
[Ie] rated operational current
3 A AT 240 V AC-15 A600 CONFORMING TO ENIEC 60947-5-1
electrical durability
1000000 CYCLES AC-15 2 A AT 230 V OPERATING RATE 3600 CYCH LOAD FACTOR 0.5 CONFORMING TO ENIEC 60947-5-1 APPENDIX C
electrical reliability
λ < 10exp(-7) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
