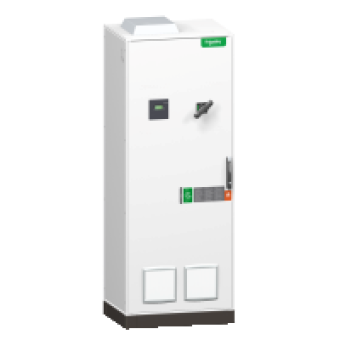

VLVAF5N03517AB - VarSetcapacitorbankAuto350kvarxxB400V50Hz, Schneider Electric
- Product Code: VLVAF5N03517AB
- Brand: Schneider Electric
- Availability: To be confirmed
- € 9,609.08 Ex Tax:
MAIN CHARACTERISTICS
network rated voltage
400 V - AC AT 50 HZ
reactive power rating
350 KVAR
operating mode
AUT
range
VARSET
range of product
VARSET
device short name
VARSET AUTOMATIC
product or component type
CAPACITOR BANK
COMPLEMETARY CHARACTERISTICS
network pollution level
LOW POLLUTED
[Gh/Sn] harmonic pollution rate
15...25 PC
[THDU] total harmonic distorsion of voltage
> 3...4
step sequences
1.2.2
power per step
50 KVAR
step composition
50 + 3X100
location of connection
BOTTOM
internal voltage transformer
400230 V - 630 VA
controller type
VARPLUS LOGIC VPL6 MODBUS
capacitor technology
VARPLUSCAN
poles description
3P
capacitance tolerance
- 5 PT TO 10 PT
[Ui] rated insulation voltage
690 V
[Uimp] rated impulse withstand voltage
8 KV
maximum permissible voltage
1.1 X UN 8 HOURS OVER 24 HOURS CONFORMING TO IEC 60831
[Imp] maximum permanent current
CAPACITOR 1.8 X IN AT 400 V CONFORMING TO IEC 60831
protection type
WITHOUT PROTECTION
[Icw] rated short-time withstand current
35 KA AT 1 S ICW
accessibility for operation
FRONT
colour
RAL 7035 (grey)
maximum weight
434 KG
height
2200 MM
width
800 MM
depth
600 MM
provided equipment
AUXILIARY TRANSFORMER
function available
GENSET SHEDDING CONTACT
