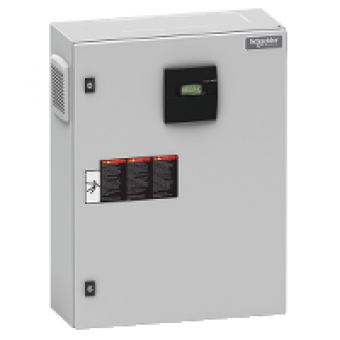

VLVAW1L100A40A - Capacitor Bank VarSet Easy 100K CB Auto, Schneider Electric
- Product Code: VLVAW1L100A40A
- Brand: Schneider Electric
- Availability: To be confirmed
- € 2,704.01 Ex Tax:
MAIN CHARACTERISTICS
network rated voltage
400 V - AC AT 50 HZ
reactive power rating
100 KVAR
operating mode
AUT
range
VARSET
range of product
VARSET
device short name
VARSET AUTOMATIC
product or component type
CAPACITOR BANK
COMPLEMETARY CHARACTERISTICS
network pollution level
NO POLLUTED
[Gh/Sn] harmonic pollution rate
0...15 PC
[THDU] total harmonic distorsion of voltage
0...3 PC
step sequences
1.2.2
power per step
20 KVAR
step composition
20 + 2X40
location of connection
TOP
internal voltage transformer
400230 V - 160 VA
controller type
VARPLUS LOGIC VPL6 MODBUS
capacitor technology
EASYCAN
poles description
3P
capacitance tolerance
- 5 PT TO 10 PT
[Ui] rated insulation voltage
690 V
[Uimp] rated impulse withstand voltage
6 KV
maximum permissible voltage
1.1 X UN 8 HOURS OVER 24 HOURS CONFORMING TO IEC 60831
[Imp] maximum permanent current
CAPACITOR 1.5 X IN AT 400 V CONFORMING TO IEC 60831
protection type
CIRCUIT BREAKER PROTECTION
breaking capacity
35 KA ICU
accessibility for operation
FRONT
colour
RAL 7035 (grey)
maximum weight
73 KG
height
800 MM
width
600 MM
depth
250 MM
provided equipment
AUXILIARY TRANSFORMER
function available
GENSET SHEDDING CONTACT
