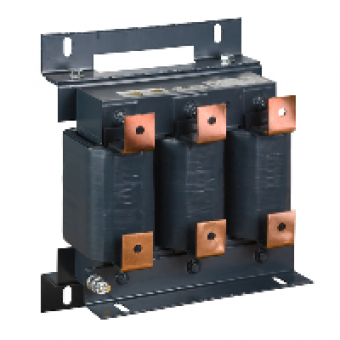

VW3A4569 - line choke - 0.06 mH - 450 A - 3 phases - 335 W - for variable speed drive, Schneider Electric
- Product Code: VW3A4569
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
ALTIVAR
product or component type
LINE CHOKES
product compatibility
ATV61HC22N4D - LINE CHOKE - 2 PER DRIVE
number of phases
THREE PHASE
range compatibility
ALTIVAR 61
device application
REDUCTION OF CURRENT HARMONICS
value of inductance
0.06 MH
[In] rated current
450 A
saturation current
574 A
thermal losses
335 W
electrical connection
BARE WIRES = 13 MM
COMPLEMETARY CHARACTERISTICS
power supply frequency
50..60 HZ
max current
1.65 X NOMINAL CURRENT FOR 60 S
voltage drop at rated load
3...5
electrical insulation class
CLASS F
clearance distance
5.5 MM CONFORMING TO IEC 60664
leakage distance
11.5 MM CONFORMING TO IEC 60664
product weight
70 KG
width
320 MM
height
385 MM
depth
250 MM
The Schneider Electric VW3A4569 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
