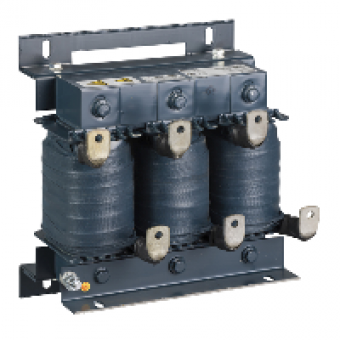

VW3A4570 - line choke - 0.22 mH - 152 A - 3 phases - 220 W - for variable speed drive, Schneider Electric
- Product Code: VW3A4570
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
ALTIVAR
product or component type
LINE CHOKES
product compatibility
ATV61HC11Y - LINE CHOKE - 1 PER DRIVE
number of phases
THREE PHASE
range compatibility
ALTIVAR 61
device application
REDUCTION OF CURRENT HARMONICS
value of inductance
0.22 MH
[In] rated current
152 A
saturation current
320 A
thermal losses
220 W
electrical connection
BARE WIRES = 9 MM
COMPLEMETARY CHARACTERISTICS
power supply frequency
50..60 HZ
max current
1.65 X NOMINAL CURRENT FOR 60 S
voltage drop at rated load
3...5
electrical insulation class
CLASS F
clearance distance
5.5 MM CONFORMING TO IEC 60664
leakage distance
11.5 MM CONFORMING TO IEC 60664
product weight
28 KG
width
280 MM
height
305 MM
depth
210 MM
