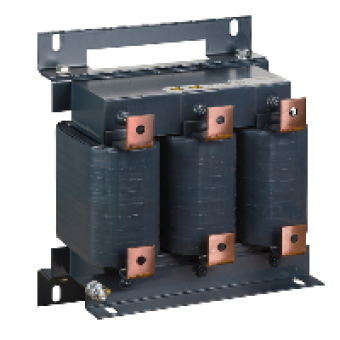

VW3A4571 - line choke - 0.23 mH - 220 A - 3 phases - 330 W - for variable speed drive, Schneider Electric
- Product Code: VW3A4571
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
ALTIVAR
product or component type
LINE CHOKES
product compatibility
ATV61HC16Y - LINE CHOKE - 1 PER DRIVE
number of phases
THREE PHASE
range compatibility
ALTIVAR 61
device application
REDUCTION OF CURRENT HARMONICS
value of inductance
0.23 MH
[In] rated current
220 A
saturation current
405 A
thermal losses
330 W
electrical connection
BARE WIRES = 13 MM
COMPLEMETARY CHARACTERISTICS
power supply frequency
50..60 HZ
max current
1.65 X NOMINAL CURRENT FOR 60 S
voltage drop at rated load
3...5
electrical insulation class
CLASS F
clearance distance
5.5 MM CONFORMING TO IEC 60664
leakage distance
11.5 MM CONFORMING TO IEC 60664
product weight
79 KG
width
385 MM
height
440 MM
depth
245 MM
