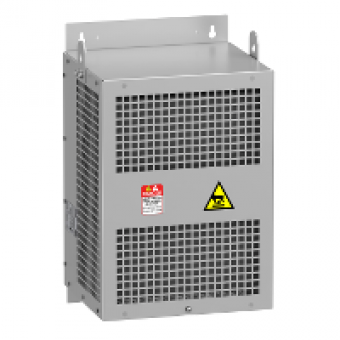

VW3A5404 - output sinus filter - 50 A - for variable speed drive, Schneider Electric
- Product Code: VW3A5404
- Brand: Schneider Electric
- Availability: To be confirmed
- € 858.11 Ex Tax:
MAIN CHARACTERISTICS
product or component type
SINUS FILTER
range compatibility
ALTIVAR PROCESS ATV600
product specific application
OUTPUT FILTER
COMPLEMETARY CHARACTERISTICS
motor cable length
<= 1000 M UNSHIELDED CABLE
[In] rated current
50 A
thermal losses
196 W AT 4 KHZ
product compatibility
VARIABLE SPEED DRIVE ATV630 WALL MOUNT MOTOR 11 KW 200...240 V
electrical connection
terminal block, connection capacity: 16 mm² / AWG 4
operating altitude
<= 1000 M WITHOUT CURRENT DERATING
switching frequency
2..8 KHZ
output frequency
<= 100 HZ
voltage drop at rated load
< 8
permissible voltage
<= 480 V AC
max current
1.20 X NOMINAL CURRENT FOR 60 S
width
300 MM
height
560 MM
depth
245 MM
product weight
35 KG
The Schneider Electric VW3A5404 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
