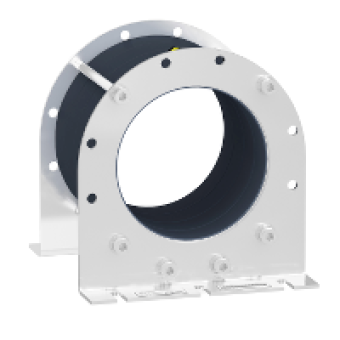

VW3A5505 - common mode filter for bearing current reduction - 183.2 µH, Schneider Electric
- Product Code: VW3A5505
- Brand: Schneider Electric
- Availability: To be confirmed
- € 799.10 Ex Tax:
MAIN CHARACTERISTICS
product or component type
COMMON MODE OUTPUT FILTER
range compatibility
ALTIVAR PROCESS ATV600
value of inductance
183.2 MICH
product compatibility
VARIABLE SPEED DRIVE ATV630 WALL MOUNT MOTOR 110...160 KW 380...480 V
COMPLEMETARY CHARACTERISTICS
motor cable length
<= 150 M UNSHIELDED CABLE MOTOR 110...160 KW 380...480 V WITH 1 FILTER
saturation current
3.6 A
internal diameter
123.9 MM FOR 3-PHASE CABLE INSIDE
electrical insulation class
CLASS I
mechanical robustness
shocks conforming to IEC 60721-3-3 class 3M4
switching frequency
<= 10 KHZ
output frequency
<= 100 HZ
height
197 MM
width
191 MM
depth
196 MM
product weight
6 KG
