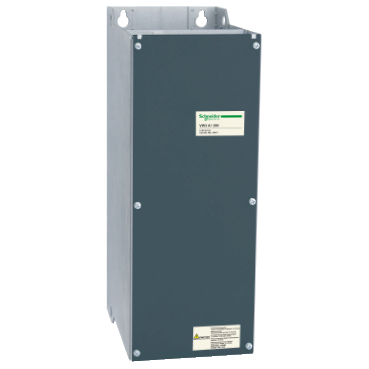

VW3A7260 - line filter module - 120 kW - 380...480 V, Schneider Electric
- Product Code: VW3A7260
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
product or component type
LINE FILTER MODULE
device short name
LFM
network number of phases
3 PHASES
[Us] rated supply voltage
380..480 V +- 10
network frequency
50 60 HZ
range compatibility
ALTIVAR 61
product specific application
COMPONENT OF ACTIVE FRONT END
assembly style
BUILT IN UNIT
type of cooling
NATURAL CONVECTION
product destination
1 ACTIVE INFEED CONVERTER AIC VW3A7250
COMPLEMETARY CHARACTERISTICS
maximum number of switchings
10 PER HOUR
line current
185 A AT 50 DC
thermal losses
290 W
electrical connection
BAR M10 - 95 MM 24 N.M 1L1 1L2 1L3
output type
CONTROL ELECTRONICS FOR AIC AND INVERTER 24 V DC
height
680 MM
width
240 MM
depth
379 MM
product weight
60 KG
compatibility code
AIC
