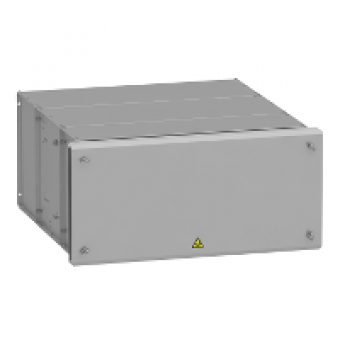

VW3A7755 - braking resistor - 8 ohms - 25 kW - IP23, Schneider Electric
- Product Code: VW3A7755
- Brand: Schneider Electric
- Availability: To be confirmed
- € 2,052.15 Ex Tax:
MAIN CHARACTERISTICS
product or component type
BRAKING RESISTOR
COMPLEMETARY CHARACTERISTICS
range compatibility
ALTIVAR PROCESS ATV900
product compatibility
VARIABLE SPEED DRIVE ATV930 WALL MOUNT 55 KW 380...480 V SEVERE CYCLE
braking cycle
SEVERE CYCLE HEAVY DUTY 54 S BRAKING WITH 100 BRAKING TORQUE FOR A 120 S CYCLE
average power available
25 KW AT 50 DC
ohmic value
8 OHM
electrical connection
TERMINAL CLAMPING CAPACITY <= 2.5 MM AWG 12 FOR TEMPERATURE CONTROL SWITCH
protection type
thermal protection via drive or temperature control switch at 120 °C
[Ue] rated operational voltage
24 V DC
width
540 MM
height
1035 MM
depth
1060 MM
product weight
86 KG
