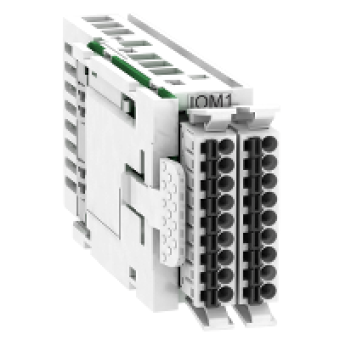

VW3M3302 - additional analog and digital inputs and outputs with spring terminals, Schneider Electric
- Product Code: VW3M3302
- Brand: Schneider Electric
- Availability: To be confirmed
- € 163.64 Ex Tax:
MAIN CHARACTERISTICS
range compatibility
LEXIUM 32
accessory / separate part category
COMMUNICATION ACCESSORIES
accessory / separate part type
MODULE
product or component type
ADDITIONNAL I O MODULE
product compatibility
LEXIUM 32M
accessory / separate part destination
SERVO DRIVE
COMPLEMETARY CHARACTERISTICS
input/output type
4 discrete inputs : - 3...5 V/15...30 V, 2.5 mA, for 0.25 ms
protection type
REVERSE POLARITY PROT ON INPUT
reverse polarity protection
YES ON INPUT
short-circuit protection
YES ON OUTPUT
electrical connection
SPRING TERMINAL
product weight
0.45 KG
