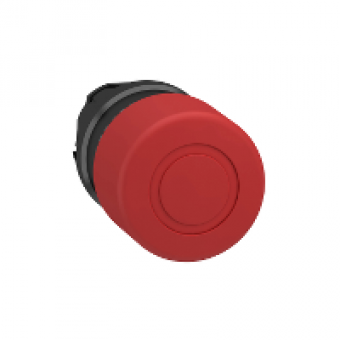

ZB4BT847 - red Ø40 Emergency stop switching off head Ø22 trigger and latching push-pull, Schneider Electric
- Product Code: ZB4BT847
- Brand: Schneider Electric
- Availability: To be confirmed
- € 12.99 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB4
product or component type
HEAD FOR MRGC SWITCHING OFF PB
device short name
ZB4
bezel material
BLACK METAL
mounting diameter
22 MM
sale per indivisible quantity
1
shape of signaling unit head
ROUND
type of operator
TRIGGER ACTION AND MECHANICAL LATCHING
reset
PUSH-PULL
operator profile
RED MUSHROOM 40 MM UNMARKED
COMPLEMETARY CHARACTERISTICS
CAD overall width
40 MM
CAD overall height
40 MM
CAD overall depth
56 MM
product weight
0.078 KG
resistance to high pressure washer
7000000 PA AT 55 CDISTANCE 0.1 M
mechanical durability
300000 CYCLES
electrical composition code
C7 FOR <= 4 CONTACTS USING SINGLE BLOCKS IN FRONT MOUNTING
main group
E STOP
group of product
EMERGENCY STOP PULL TO RELEASE
cap/operator or lens colour
RED
marking
UNMARKED
compatibility code
ZB4
