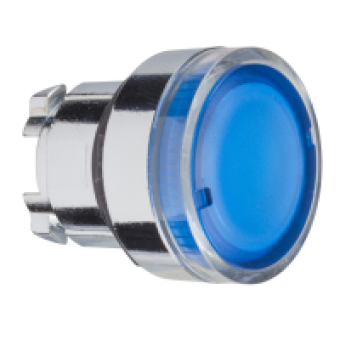

ZB4BW36 - blue flush illuminated pushbutton head Ø22 spring return for BA9s bulb, Schneider Electric
- Product Code: ZB4BW36
- Brand: Schneider Electric
- Availability: To be confirmed
- € 4.87 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB4
product or component type
HEAD F ILLUMINATED PB
device short name
ZB4
product compatibility
BA 9S
bezel material
CHROMIUM PLATED METAL
mounting diameter
22 MM
sale per indivisible quantity
1
shape of signaling unit head
ROUND
type of operator
SPRING RETURN
operator profile
BLUE FLUSH UNMARKED
operator additional information
WITH PLAIN LENS
COMPLEMETARY CHARACTERISTICS
CAD overall width
29 MM
CAD overall height
29 MM
CAD overall depth
32 MM
product weight
0.027 KG
resistance to high pressure washer
7000000 PA AT 55 CDISTANCE 0.1 M
mechanical durability
10000000 CYCLES
electrical composition code
M7 FOR <= 6 CONTACTS USING SINGLE BLOCKS IN FRONT MOUNTING WITH BA 9S
main group
ILLUM PUSHBUTTON
group of product
FLUSH PUSH BA9S
cap/operator or lens colour
BLUE
marking
UNMARKED
compatibility code
ZB4
The Schneider Electric ZB4BW36 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
