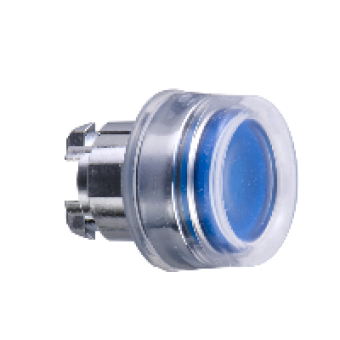

ZB4BW563 - blue flush illuminated pushbutton head Ø22 spring return for integral LED, Schneider Electric
- Product Code: ZB4BW563
- Brand: Schneider Electric
- Availability: To be confirmed
- € 6.37 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB4
product or component type
HEAD F ILLUMINATED PB
device short name
ZB4
product compatibility
INTEGRAL LED
bezel material
CHROMIUM PLATED METAL
mounting diameter
22 MM
sale per indivisible quantity
1
shape of signaling unit head
ROUND
type of operator
SPRING RETURN
operator profile
BLUE FLUSH UNMARKED
operator additional information
CLEAR BOOT
COMPLEMETARY CHARACTERISTICS
CAD overall width
29 MM
CAD overall height
29 MM
CAD overall depth
30 MM
product weight
0.031 KG
resistance to high pressure washer
7000000 PA AT 55 CDISTANCE 0.1 M
mechanical durability
10000000 CYCLES
electrical composition code
M1 FOR <= 6 CONTACTS USING SINGLE BLOCKS IN FRONT MOUNTING WITH INTEGRAL LED
cap/operator or lens colour
BLUE
marking
UNMARKED
compatibility code
ZB4
