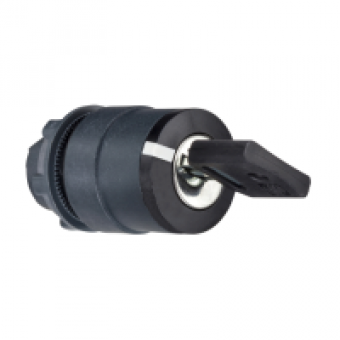

ZB5AG610 - selector switch head Ø22 2-position spring return Ronis 458A, Schneider Electric
- Product Code: ZB5AG610
- Brand: Schneider Electric
- Availability: To be confirmed
- € 21.22 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB5
product or component type
HEAD FOR KEY SELECTOR SWITCH
device short name
ZB5
bezel material
PLASTIC
mounting diameter
22 MM
sale per indivisible quantity
1
shape of signaling unit head
ROUND
type of operator
SPRING RETURN RIGHT TO LEFT
operator profile
BLACK KEY SWITCH
operator position information
2 POSITIONS 90 D
type of keylock
RONIS 458A
key withdrawal position
LEFT
COMPLEMETARY CHARACTERISTICS
CAD overall width
29 MM
CAD overall height
29 MM
CAD overall depth
72 MM
product weight
0.061 KG
mechanical durability
1000000 CYCLES
main group
SELECTOR SWITCH
group of product
KEY SWITCH
station name
XALD 1..5 CUT-OUTS
cap/operator or lens colour
BLACK
electrical composition code
C4 FOR <= 6 CONTACTS USING SINGLE AND DOUBLE BLOCKS IN FRONT MOUNTING
compatibility code
ZB5
The Schneider Electric ZB5AG610 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
