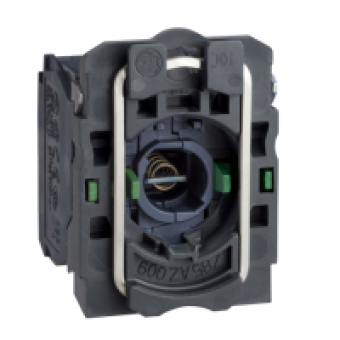

ZB5AW063 - light block with body/fixing collar for BA9s bulb 250V 2NO, Schneider Electric
- Product Code: ZB5AW063
- Brand: Schneider Electric
- Availability: To be confirmed
- € 8.79 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB5
product or component type
COMPLETE BDY CTCT ASSY+LGT BLK
device short name
ZB5
fixing collar material
PLASTIC
sale per indivisible quantity
1
contacts type and composition
2 NO
contact operation
SLOW-BREAK
connections - terminals
screw clamp terminals : <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
light source
BULB NOT INCLUDED
bulb base
BA 9S
light block supply
DIRECT <= 2.4 W
COMPLEMETARY CHARACTERISTICS
CAD overall width
30 MM
CAD overall height
42 MM
CAD overall depth
32 MM
terminals description ISO n°1
11-12NC
product weight
0.041 KG
contacts usage
STANDARD
positive opening
WITHOUT POSITIVE OPENING
operating travel
2.6 MM NO CHANGING ELECTRICAL STATE
operating force
2.3 N NO CHANGING ELECTRICAL STATE
operating torque
0.05 N.M NO CHANGING ELECTRICAL STATE
mechanical durability
5000000 CYCLES
tightening torque
0.8...1.2 N.M CONFORMING TO EN 60947-1
shape of screw head
CROSS HEAD COMPATIBLE WITH PHILIPS NO 1 SCREWDRIVER
contacts material
SILVER ALLOY AG NI
short-circuit protection
10 A CARTRIDGE FUSE TYPE GG CONFORMING TO ENIEC 60947-5-1
[Ith] conventional free air thermal current
10 A CONFORMING TO ENIEC 60947-5-1
[Ui] rated insulation voltage
600 V DEGREE OF POLLUTION 3 CONFORMING TO EN 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO EN 60947-1
[Ie] rated operational current
3 A AT 240 V AC-15 A600 CONFORMING TO ENIEC 60947-5-1
electrical durability
1000000 CYCLES AC-15 2 A AT 230 V OPERATING RATE 3600 CYCH LOAD FACTOR 0.5 CONFORMING TO ENIEC 60947-5-1 APPENDIX C
electrical reliability
λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
signalling type
STEADY
[Us] rated supply voltage
<= 250 V
compatibility code
ZB5
