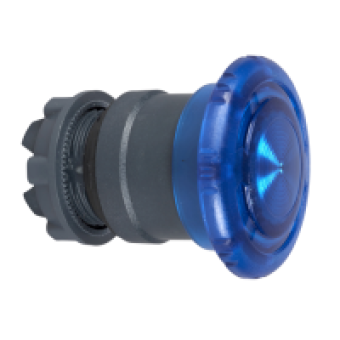

ZB5AW763 - blue Ø40 illum mushroom pushbutton head Ø22 latching for integral LED, Schneider Electric
- Product Code: ZB5AW763
- Brand: Schneider Electric
- Availability: To be confirmed
- € 13.22 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB5
product or component type
HEAD F ILLUMINATED PB
device short name
ZB5
product compatibility
INTEGRAL LED
bezel material
PLASTIC
mounting diameter
22 MM
sale per indivisible quantity
1
shape of signaling unit head
ROUND
type of operator
LATCHING
reset
TURN TO RELEASE
operator profile
BLUE MUSHROOM 40 MM UNMARKED
COMPLEMETARY CHARACTERISTICS
CAD overall width
40 MM
CAD overall height
40 MM
CAD overall depth
50 MM
product weight
0.022 KG
resistance to high pressure washer
7000000 PA AT 55 CDISTANCE 0.1 M
mechanical durability
300000 CYCLES
main group
MUSHROOM HEAD
group of product
MUSH TURN TO RELEASE ILLUM
station name
XALD 1 CUT-OUT
cap/operator or lens colour
BLUE
marking
UNMARKED
electrical composition code
M6 FOR <= 2 CONTACTS USING SINGLE BLOCKS IN FRONT MOUNTING WITH INTEGRAL LED AND TRANSFORMER
compatibility code
ZB5
