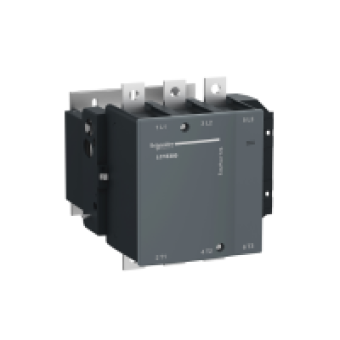

LC1E400Q7 - EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 400A - 380 V AC coil, Schneider Electric
- Product Code: LC1E400Q7
- Brand: Schneider Electric
- Availability: To be confirmed
- € 792.17 Ex Tax:
MAIN CHARACTERISTICS
range
EASYPACT
product name
EASYPACT TVS
product or component type
CONTACTOR
device short name
LC1E
contactor application
MOTOR CONTROL
utilisation category
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 690 V AC 5060 HZ FOR POWER CIRCUIT
[Ie] rated operational current
400 A <= 55 C AC AC-3 FOR POWER CIRCUIT <= 440 V
motor power kW
110 KW AT 220...230 V AC 5060 HZ
control circuit type
AC 5060 HZ
[Uc] control circuit voltage
380 V AC 5060 HZ
height
375 MM
width
213 MM
depth
219 MM
product weight
9.1 KG
COMPLEMETARY CHARACTERISTICS
[Uimp] rated impulse withstand voltage
8 KV COIL NOT CONNECTED TO THE POWER CIRCUIT IEC 60947
[Ui] rated insulation voltage
690 V conforming to IEC 60947-4-1
overvoltage category
III
Irms rated making capacity
4000 A - 440 V AC FOR POWER CIRCUIT CONFORMING TO IEC 60947-4-1
rated breaking capacity
3200 KA AT 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947
[Icw] rated short-time withstand current
3600 KA AT <= 40 C - 10 S FOR POWER CIRCUIT
associated fuse rating
10 A GG <= 690 V TYPE 1 CONTROL CIRCUIT IEC 60947-5-1
average impedance
0.26 MOHM AT 50 HZ ITH 500 A FOR POWER CIRCUIT
power dissipation per pole
42 W AC-3
control circuit voltage limits
0.85...1.1 UC AT <= 55 C OPERATIONAL 5060 HZ
operating time
100..170 MS ON OPENING
mechanical durability
4000000 CYCLES
operating rate
2400 CYCH AT <= 55 DC
inrush power in VA
1075 VA AT 20 C 0.9 50 HZ
hold-in power consumption in VA
15 VA AT 20 C 0.9 50 HZ
heat dissipation
14 W FOR CONTROL CIRCUIT
minimum switching current
5 MA CONTROL CIRCUIT
minimum switching voltage
17 V CONTROL CIRCUIT
non-overlap time
1.5 MS ON ENERGISATION GUARANTEED BETWEEN NC AND NO CONTACT
insulation resistance
> 10 MOHM CONTROL CIRCUIT
electrical durability
250000 CYCLES AC-1
mounting support
PLATE
connections - terminals
CONTROL CIRCUIT SCREW CLAMP TERMINALS - 1 FLEXIBLE CABLES 1...4 MM WITHOUT CABLE END
tightening torque
1.2 N.M FOR CONTROL CIRCUIT
The Schneider Electric LC1E400Q7 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
