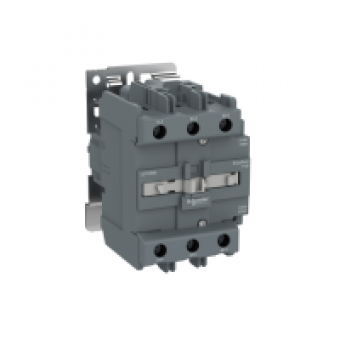

LC1E80B5 - EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 80A - 24 V AC coil, Schneider Electric
- Product Code: LC1E80B5
- Brand: Schneider Electric
- Availability: To be confirmed
- € 93.53 Ex Tax:
MAIN CHARACTERISTICS
range
EASYPACT
product name
EASYPACT TVS
product or component type
CONTACTOR
device short name
LC1E
contactor application
MOTOR CONTROL
utilisation category
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 690 V AC 5060 HZ FOR POWER CIRCUIT
[Ie] rated operational current
80 A <= 60 C AC AC-3 FOR POWER CIRCUIT <= 440 V
motor power kW
22 KW AT 220...230 V AC 5060 HZ AC-3
control circuit type
AC 50 HZ
[Uc] control circuit voltage
24 V AC 50 HZ
height
127 MM
width
85 MM
depth
121 MM
product weight
1.52 KG
colour
GREY RAL 7011
COMPLEMETARY CHARACTERISTICS
auxiliary contact composition
1 NO + 1 NC
[Uimp] rated impulse withstand voltage
6 KV COIL NOT CONNECTED TO THE POWER CIRCUIT IEC 60947
[Ui] rated insulation voltage
690 V conforming to IEC 60947-4-1
overvoltage category
III
Irms rated making capacity
800 A - 440 V AC FOR POWER CIRCUIT CONFORMING TO IEC 60947-4-1
rated breaking capacity
640 KA AT 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947
[Icw] rated short-time withstand current
640 KA AT <= 40 C - 10 S FOR POWER CIRCUIT
associated fuse rating
10 A GG <= 690 V TYPE 1 CONTROL CIRCUIT IEC 60947-5-1
average impedance
0.8 MOHM AT 50 HZ ITH 110 A FOR POWER CIRCUIT
power dissipation per pole
5.1 W AC-3
control circuit voltage limits
0.85...1.1 UC AT <= 55 C OPERATIONAL 50 HZ
operating time
20..35 MS ON CLOSING
mechanical durability
300000 CYCLES
operating rate
1200 CYCH AT <= 60 DC
inrush power in VA
200 VA at 20 °C (0.75) 50 Hz
hold-in power consumption in VA
22 VA at 20 °C (0.3) 60 Hz
heat dissipation
6..10 W FOR CONTROL CIRCUIT
minimum switching current
5 MA CONTROL CIRCUIT
minimum switching voltage
17 V CONTROL CIRCUIT
non-overlap time
1.5 MS ON ENERGISATION GUARANTEED BETWEEN NC AND NO CONTACT
insulation resistance
> 10 MOHM CONTROL CIRCUIT
electrical durability
350000 CYCLES AC-1
mounting support
DIN RAIL
connections - terminals
CONTROL CIRCUIT SCREW CLAMP TERMINALS - 1 FLEXIBLE CABLES 1...4 MM WITHOUT CABLE END
tightening torque
1.2 N.M FOR CONTROL CIRCUIT
The Schneider Electric LC1E80B5 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
