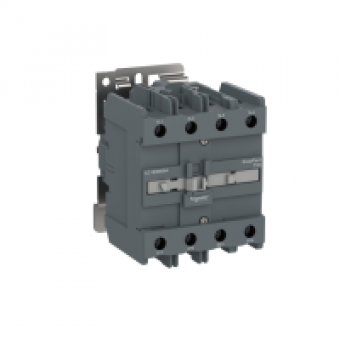

LC1E95004M7 - EasyPact TVS contactor 4P(4 NO) - AC-1 - <= 415 V 125A - 220 V AC coil, Schneider Electric
- Product Code: LC1E95004M7
- Brand: Schneider Electric
- Availability: To be confirmed
- € 251.08 Ex Tax:
MAIN CHARACTERISTICS
range
EASYPACT
product name
EASYPACT TVS
product or component type
CONTACTOR
device short name
LC1E
contactor application
RESISTIVE LOAD
utilisation category
AC-1
poles description
4P
power pole contact composition
4 NO
[Ue] rated operational voltage
<= 690 V AC 5060 HZ FOR POWER CIRCUIT
[Ie] rated operational current
125 A <= 60 C AC AC-1 FOR POWER CIRCUIT <= 415 V
control circuit type
AC 5060 HZ
[Uc] control circuit voltage
220 V AC 5060 HZ
height
127 MM
width
95 MM
depth
135 MM
product weight
1.6 KG
colour
GREY RAL 7011
COMPLEMETARY CHARACTERISTICS
[Uimp] rated impulse withstand voltage
6 kV IEC 60947
[Ui] rated insulation voltage
690 V conforming to IEC 60947-4-1
overvoltage category
III
Irms rated making capacity
950 A - 440 V AC FOR POWER CIRCUIT CONFORMING TO IEC 60947-4-1
rated breaking capacity
760 KA AT 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947
[Icw] rated short-time withstand current
135 KA AT <= 40 C - 600 S FOR POWER CIRCUIT
associated fuse rating
160 A GG <= 690 V TYPE 1 POWER CIRCUIT IEC 60947-5-1
average impedance
0.8 MOHM AT 50 HZ ITH 125 A FOR POWER CIRCUIT
power dissipation per pole
7.2 W AC-3
control circuit voltage limits
0.85...1.1 UC AT <= 55 C OPERATIONAL 5060 HZ
operating time
20..35 MS ON CLOSING
mechanical durability
300000 CYCLES
operating rate
1200 CYCH AT <= 60 DC
inrush power in VA
200 VA at 20 °C (0.75) 50 Hz
hold-in power consumption in VA
22 VA at 20 °C (0.3) 60 Hz
heat dissipation
6..10 W FOR CONTROL CIRCUIT
insulation resistance
> 10 MOHM CONTROL CIRCUIT
electrical durability
350000 CYCLES AC-1
mounting support
DIN RAIL
connections - terminals
CONTROL CIRCUIT SCREW CLAMP TERMINALS - 1 FLEXIBLE CABLES 1...4 MM WITHOUT CABLE END
tightening torque
1.2 N.M FOR CONTROL CIRCUIT
