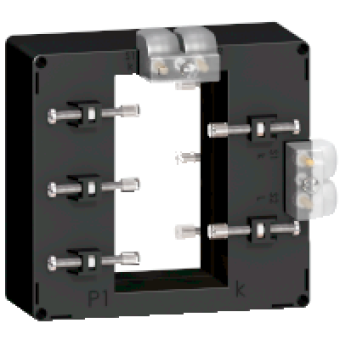

METSECT5DE100 - current transformer tropicalised 1000 5 double output for bars 54x102, Schneider Electric
- Product Code: METSECT5DE100
- Brand: Schneider Electric
- Availability: To be confirmed
- € 45.84 Ex Tax:
MAIN CHARACTERISTICS
range
POWERLOGIC
range of product
POWERLOGIC CT
product name
CT
product or component type
CURRENT TRANSFORMER
secondary current
5 A
accuracy class
CLASS 0.5 MAXIMUM POWER 12 VA
[In] rated current
1000 A
COMPLEMETARY CHARACTERISTICS
current transformer type
TROPICALISED FOR BUSBAR
current transformer ratio
1000 5
[Ith] conventional free air thermal current
60 KA
dynamic withstand current
2.5 ITH
safety factor
<= 5
[Ue] rated operational voltage
< 720 V AC at 50/60 Hz
[Ui] rated insulation voltage
3 KV
mounting mode
INSULATED LOCKING SCREW
mounting support
BUSBAR
width
55 MM INNER
height
129 mm outside
depth
50 mm outside
product weight
0.642 KG
[Uimp] rated impulse withstand voltage
3 kV
electrical insulation class
CLASS B
opening of bars
102 X 54
sealing
WITH
compatibility code
DE
