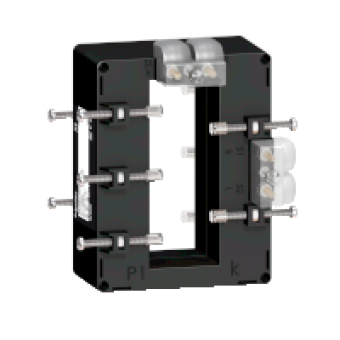

METSECT5DH200 - current transformer tropicalised 2000 5 double output for bars 38x102, Schneider Electric
- Product Code: METSECT5DH200
- Brand: Schneider Electric
- Availability: To be confirmed
- € 66.61 Ex Tax:
MAIN CHARACTERISTICS
range
POWERLOGIC
range of product
POWERLOGIC CT
product name
CT
product or component type
CURRENT TRANSFORMER
secondary current
5 A
accuracy class
CLASS 0.5 MAXIMUM POWER 20 VA
[In] rated current
2000 A
COMPLEMETARY CHARACTERISTICS
current transformer type
TROPICALISED FOR BUSBAR
current transformer ratio
2000 5
[Ith] conventional free air thermal current
60 KA
dynamic withstand current
2.5 ITH
safety factor
<= 5
[Ue] rated operational voltage
< 720 V AC at 50/60 Hz
[Ui] rated insulation voltage
3 KV
mounting mode
INSULATED LOCKING SCREW
mounting support
BUSBAR
width
98 mm outside
height
129 mm outside
depth
40 mm outside
product weight
0.656 KG
[Uimp] rated impulse withstand voltage
3 kV
electrical insulation class
CLASS B
opening of bars
102 X 38
sealing
WITH
compatibility code
DH
