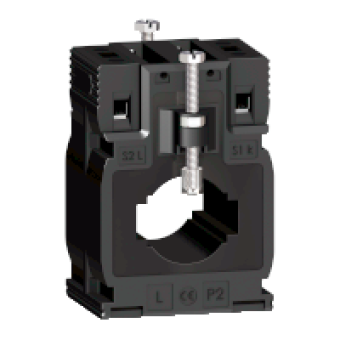

METSECT5MA015 - current transformer tropicalised DIN mount 150 5 cables d. 27 - bars 10x32 15x25, Schneider Electric
- Product Code: METSECT5MA015
- Brand: Schneider Electric
- Availability: To be confirmed
- € 14.08 Ex Tax:
MAIN CHARACTERISTICS
range
POWERLOGIC
range of product
POWERLOGIC CT
product name
CT
product or component type
CURRENT TRANSFORMER
secondary current
5 A
accuracy class
class 0.5 maximum power: 3 VA
[In] rated current
150 A
COMPLEMETARY CHARACTERISTICS
current transformer type
TROPICALISED FOR BUSBAR+CABLE
current transformer ratio
150 5
[Ith] conventional free air thermal current
9 KA
dynamic withstand current
2.5 ITH
safety factor
<= 5
[Ue] rated operational voltage
< 720 V AC at 50/60 Hz
[Ui] rated insulation voltage
3 KV
mounting mode
INSULATED LOCKING SCREW
mounting support
BUSBAR
width
56 MM OUTSIDE
height
80 mm outside
depth
43 MM OUTSIDE
diameter
27 mm
product weight
0.298 KG
[Uimp] rated impulse withstand voltage
3 kV
electrical insulation class
CLASS B
opening of bars
32.5 X 10.5
cable outer diameter
27 mm max
sealing
WITHOUT
compatibility code
MA
